Introduction:

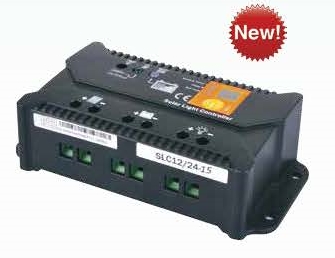

Our SLC series solar light controller that adopts the most advance digital technique and operates fully automatically. The pulse width modulation (PWM) batteries charging can greatly increase the lifetime of battery.
Features:
It has various unique functions and quite easy to use, such as:
● 12/24V automatic recognition
● High efficient series PWM charging, increase the battery lifetime and improve the solar system performance.
● Use MOSFET as electronic switch, without any mechanical switch.
●Widely used, automatically recognize day / night.
●Digital LED menu, only one key solve all setting simply.
● Intelligent timer function with 1-15 hours option.
●Unique dual timer function, enhance the flexibility of street light system.
●Gel, Sealed and Flooded battery type option.
●Adopt temperature compensation, correct the charging and discharging parameters automatically and improve the battery lifetime.
●Electronic protection: overheating, over charging, over discharging, overload, and short circuit.
●Reverse protection: any combination of solar module and battery.
Technical specifications
Model
SLC12/24-05
SLC12/24-10
SLC12/24-15
SLC12/24-20
Normal system voltage
12/24V DC auto. work
Maximum battery voltage
32V
Rated charge current
5A
10A
15A
20A
Charge circuit voltage drop
≤ 0.26V
Discharge circuit voltage drop
≤0.15V
Self-consumption
≤6mA
NTTV(night time threshold voltage)
12V system: 5V
24V system: 10V
DTTV(daytime threshold voltage)
12V system: 6V
24V system: 12V
Temperature compensation coefficient(TEMPCO)*
-30Mv/℃/12V( 25℃ ref)
*compensation of equalization, boost, float and low voltage disconnect voltage.
Working temperature
-35℃ to +55℃
Storage temperature
-35℃ to +80℃
Humidity
10%-90% NC
Enclose
IP30
Overall dimension
150*82*50mm
Terminal
6m㎡
Net weight
0.35kg
Battery voltage parameters ( temperature at 25℃)
Charging parameters
Battery charging setting
Gel
Sealed
Flooded
Over voltage disconnect voltage
16V; ×2/24V
Charging limit voltage
15.5V; ×2/24V
Over voltage reconnect voltage
15V; ×2/24V
Equalize charging voltage
14.4V; ×2/24V
14.6V; ×2/24V
14.8V; ×2/24V
Boost charging voltage
14.2V; ×2/24V
Floating charging voltage
13.8V; ×2/24V
Boost reconnect charging voltage
13.2V; ×2/24V
Low voltage reconnect voltage
12.6V; ×2/24V
Under voltage warning reconnect voltage
12V; ×2/24V
Low voltage disconnect voltage
11.1V; ×2/24V
Discharging limit voltage
10.8V; ×2/24V
Equalization duration
2 hours
Boost duration
