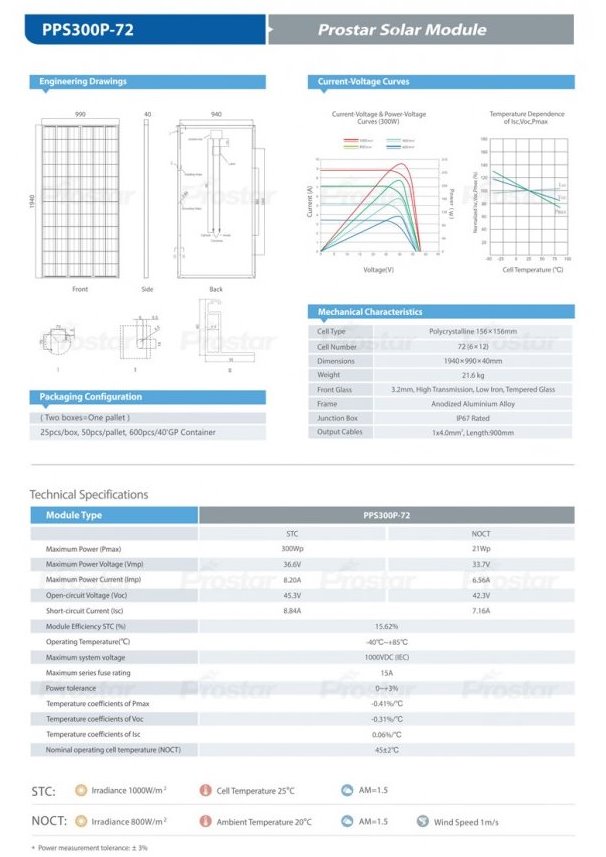

Model

PPS300P-72

Product Warranty

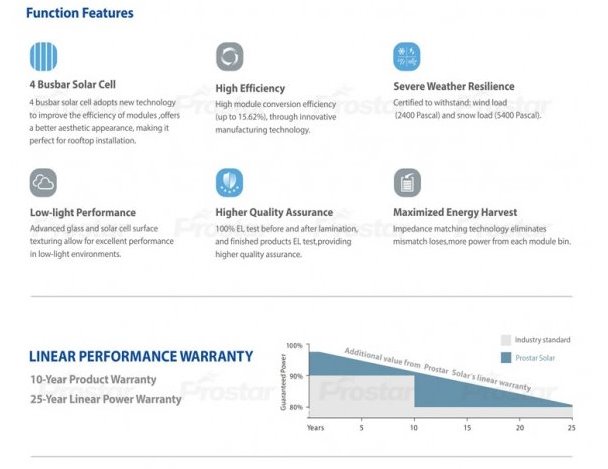

Power Warranty

STC

NOCT

Maximum Power (Pmax)

300Wp

219Wp

 Maximum Power Voltage (Vmpp)

36.6V

33.7V

Maximum Power Current (Impp)

8.20A

6.56A

Open Circuit Voltage (Voc)

45.3V

42.3V

Short Circuit Current (Isc)

8.84A

7.16A

Power Tolerance(Positive)

5%

Module Efficiency STC

15.62%

Operating Temperature Range

-40°C to +85°C

Maximum System Voltage

1000VDC (IEC)

Series Fuse Rating

15A

Temperature Coefficient of Pmax

-0.41 %/°C

Temperature Coefficient of Voc

-0.29 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Nominal Operating Cell Temperature(NOCT)

45±2°C

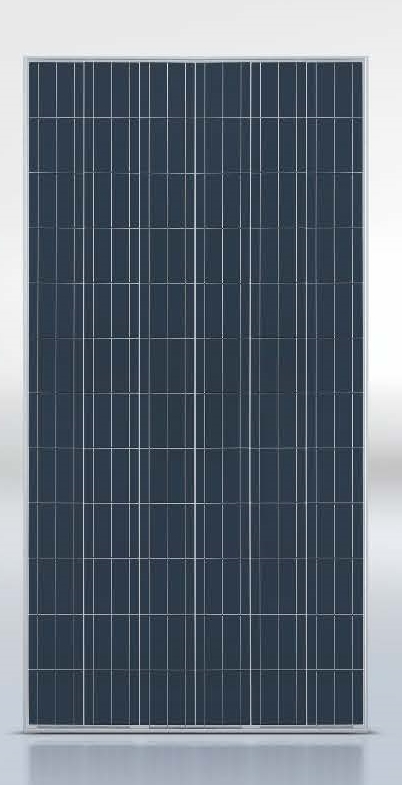

Cell Type

Polycrystalline  156×156 mm

Cell Number

72(6×12)

Dimensions (mm)

990x1940x40

Weight(Kgs)

21.6

Front Glass

3.2 mm, High Transmission, Low Iron,Tempered Glass

Frame Type

Anodized Aluminium Alloy

Junction Box Protection Class

IP 67 Rated

Connector Type

MC4

Output Cables

4 mm², Length:900 mm
