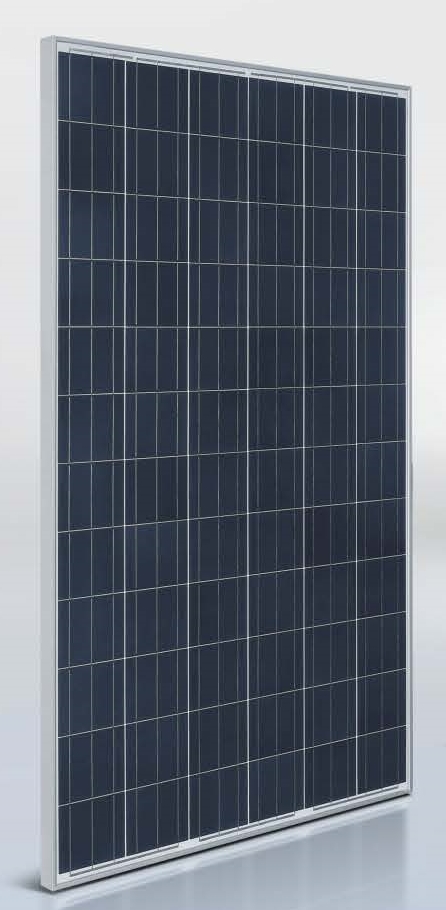

Model
PPS250M-60
Product Warranty
Power Warranty
STC
NOCT
Maximum Power (Pmax)
250Wp
184Wp
Maximum Power Voltage (Vmpp)
30.5V
28.0V
Maximum Power Current (Impp)
8.20A
6.56A
Open Circuit Voltage (Voc)
37.7V
34.9V
Short Circuit Current (Isc)
8.85A
7.21A
Power Tolerance(Positive)
5%
Module Efficiency STC
15.39%
Operating Temperature Range
-40°C to +85°C
Maximum System Voltage
1000VDC (IEC)
Series Fuse Rating
15A
Temperature Coefficient of Pmax
-0.41 %/°C
Temperature Coefficient of Voc
-0.31 %/°C
Temperature Coefficient of Isc
0.06%/°C
Nominal Operating Cell Temperature(NOCT)
45±2°C
Cell Type
Polycrystalline 156×156 mm
Cell Number
60(6×10)
Dimensions (mm)
990x1640x40
Weight(Kgs)
19.00
Front Glass
3.2 mm, High Transmission, Low Iron,Tempered Glass
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 67 Rated
Connector Type
MC4
Output Cables
4 mm², Length:900 mm
