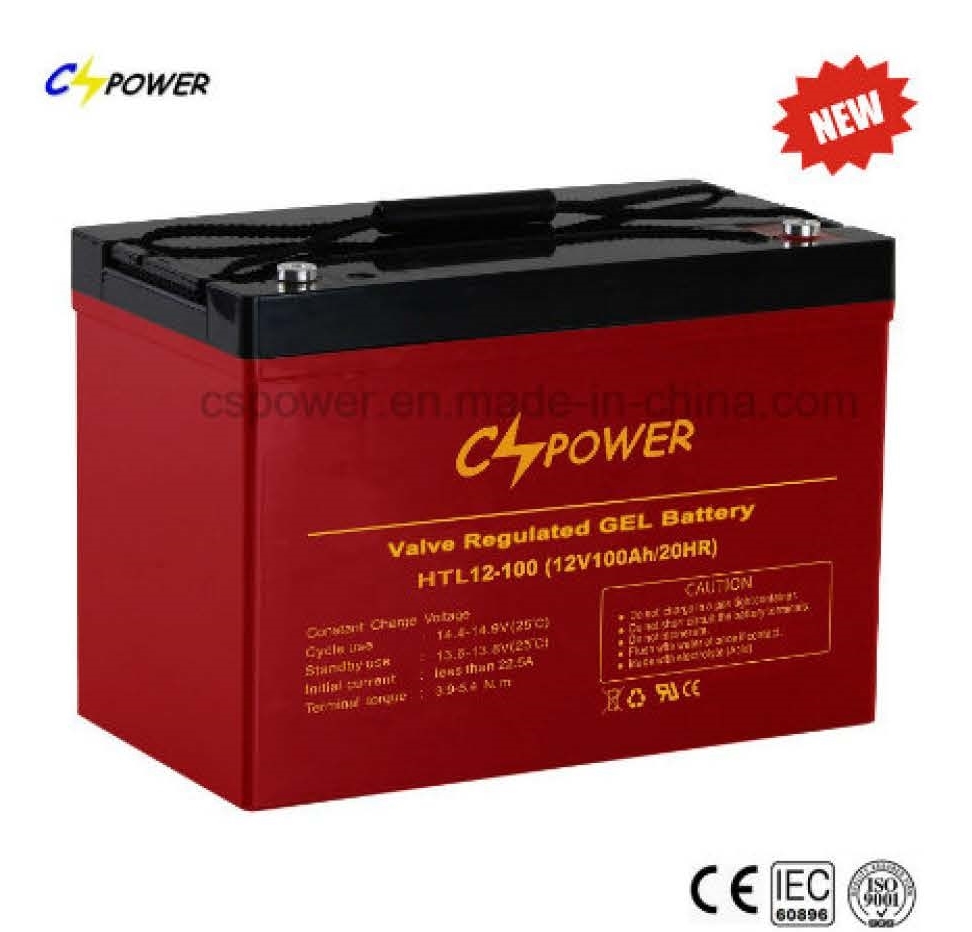

HTL series is High-temperature sealed free maintenance deep cycle GEL battery with 15-18 years design life in float service.
It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high temperature sites.

FEATURES AND BENEFITS FOR HTL BATTERIES

1.Three years warranty at 35°C average
2.Able to operate at 60°C
3. Long life and high stability under high temp. environment (no air-con needed)
4.Use super-C additives: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles

CONSTRUCTION

1) Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life
2) Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
3) Separator: Advanced AGM separator for ultra low float current
4) Electrolyte: nano GEL electrolyte import from Evonik Degussa Germany.
5) Battery container and cover: fire resistance ABS for higher temperature
6) Pillar seal: 100% factory tested, proven two layers epoxy resin seal
7) Relief valve : Complete with integrated flame arrestor


Applications

BTS Stations
Solar & Wind energy system
UPS system
Golf Cart&Electric Wheels
Other power system

Specification OF HTL Sereis high temperature long life deep cycle gel battery
